Supports 1.6Tbps ultra-high bandwidth, meeting the extreme transmission rate demands of data centers and AI clusters.

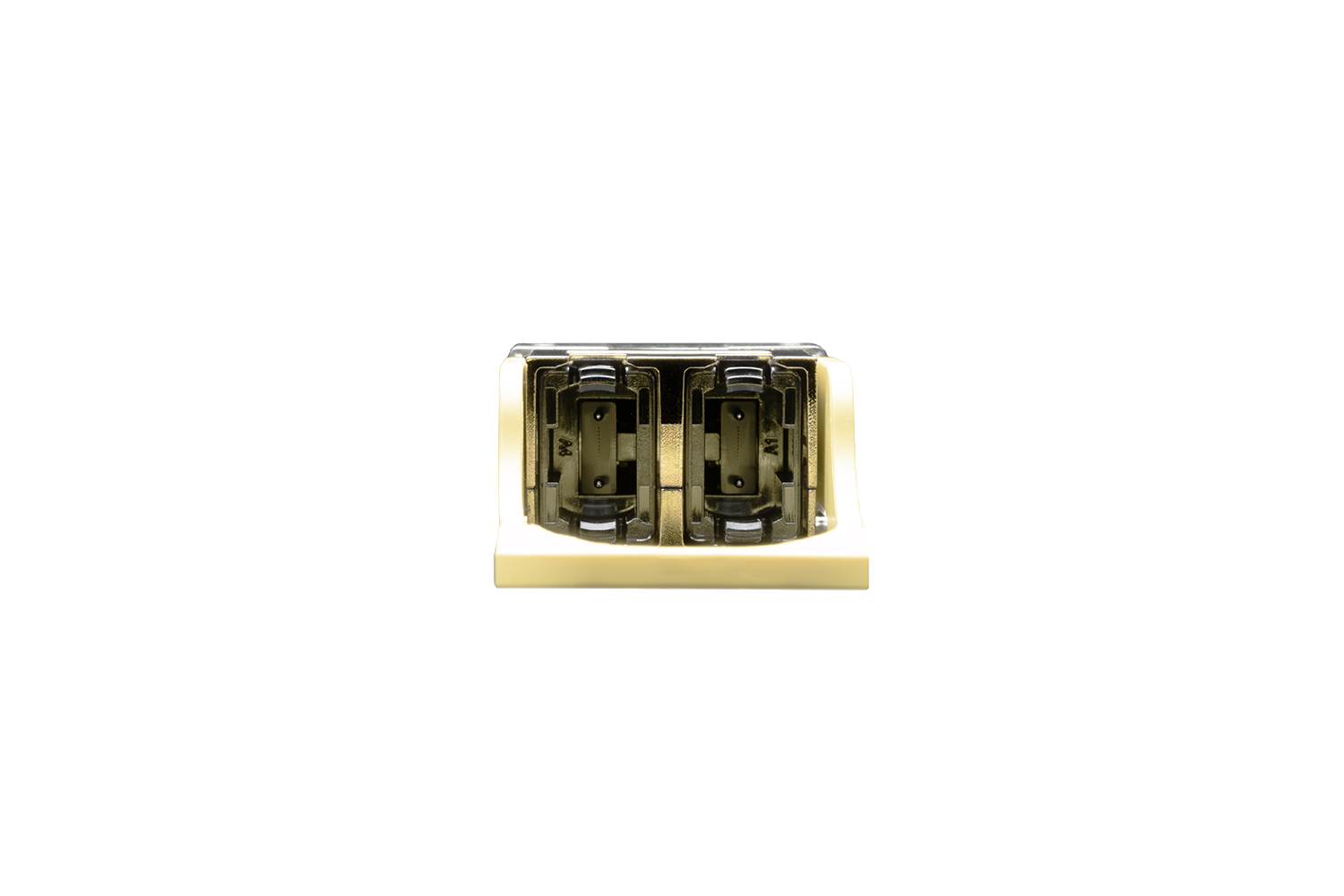

Utilizes a dual MPO-12 interface design, simplifying cabling and enhancing flexibility for high-density deployments.
Achieves a 500-meter transmission distance over single-mode fiber, covering campus and metropolitan area network interconnection scenarios.
Built-in 8-channel PAM4 modulation and DSP chip ensure signal integrity and low bit error rate.
Compliant with IEEE 802.3dj and OSFP MSA standards, compatible with mainstream switch and server platforms.

For NVIDIA 1.6T 2xDR4 OSFP224 3nm No Heat Sink Fin 8x200G PAM4 1310nm 500m DOM Dual MPO-12/APC Single-Mode Fiber Optical Module

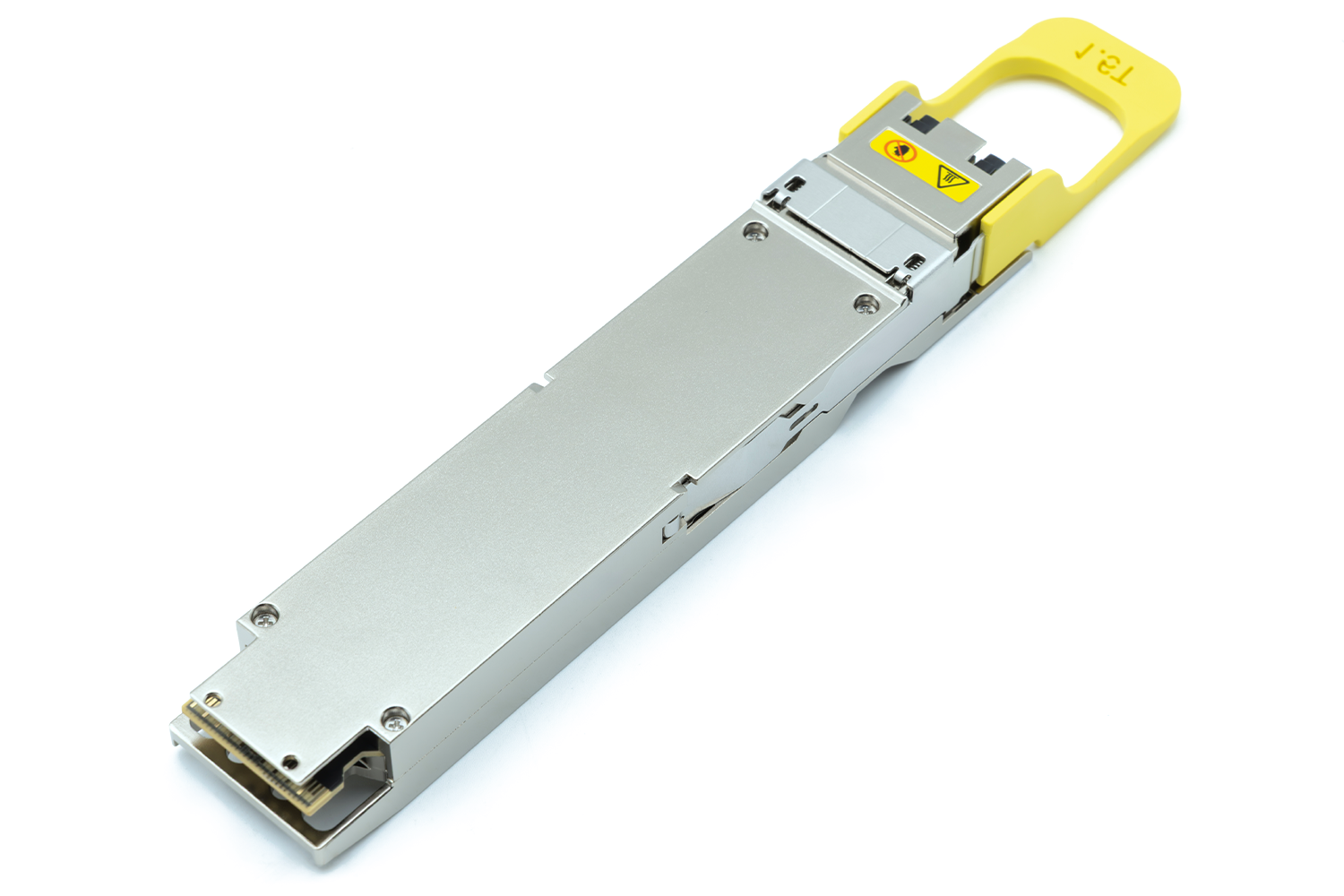

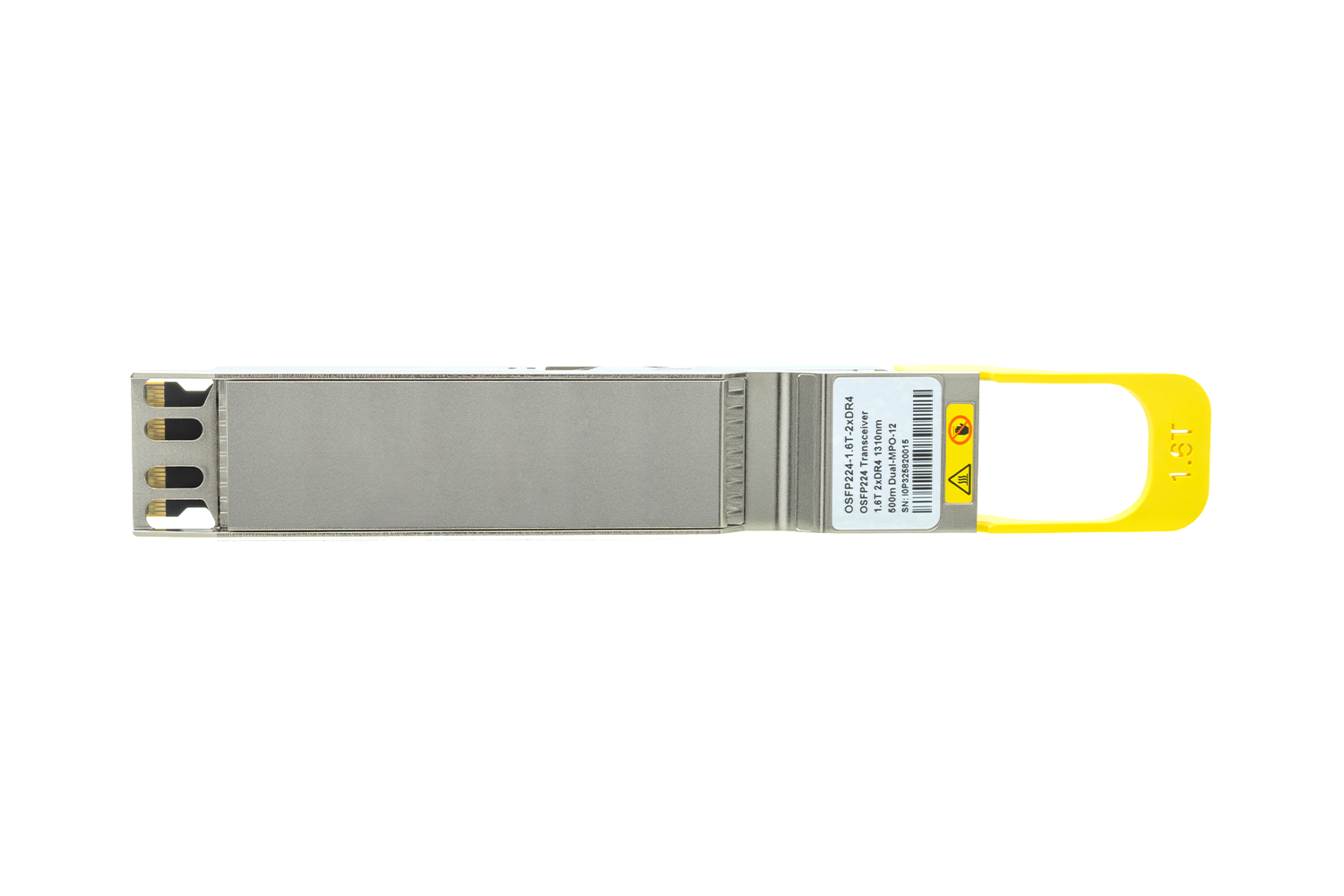

This is an OSFP packaged optical module designed for next-generation high-speed networks, specifically built for 1.6Tbps Ethernet links. Utilizing a dual DR4 architecture, it achieves stable transmission of up to 500 meters over single-mode fiber, effectively addressing bandwidth bottlenecks for intra-data center and cross-facility interconnections. The product employs advanced PAM4 modulation technology and an integrated DSP, supporting multiple rate breakout modes (such as 2x800G, 4x400G, etc.), making it suitable for cutting-edge application scenarios like hyperscale data centers, cloud computing infrastructure, and high-performance computing clusters.
Specification Model:
OSFP-1.6T-2*DR4 IHS 5nm
OSFP-1.6T-2*DR4 IHS 3nm
Compatibility:
For NVIDIA
For Cisco
For Arista
2069.00$
GST Incl.
Buy Now
Add to Cart
-
+
For NVIDIA 1.6T 2xDR4 OSFP224 3nm No Heat Sink Fin 8x200G PAM4 1310nm 500m DOM Dual MPO-12/APC Single-Mode Fiber Optical Module
This is an OSFP packaged optical module designed for next-generation high-speed networks, specifically built for 1.6Tbps Ethernet links. Utilizing a dual DR4 architecture, it achieves stable transmission of up to 500 meters over single-mode fiber, effectively addressing bandwidth bottlenecks for intra-data center and cross-facility interconnections. The product employs advanced PAM4 modulation technology and an integrated DSP, supporting multiple rate breakout modes (such as 2x800G, 4x400G, etc.), making it suitable for cutting-edge application scenarios like hyperscale data centers, cloud computing infrastructure, and high-performance computing clusters.
Specification Model:
OSFP-1.6T-2*DR4 IHS 5nm
OSFP-1.6T-2*DR4 IHS 3nm
Compatibility:
For NVIDIA
For Cisco
For Arista
2069.00$
GST Incl.
Supports 1.6Tbps ultra-high bandwidth, meeting the extreme transmission rate demands of data centers and AI clusters.
Utilizes a dual MPO-12 interface design, simplifying cabling and enhancing flexibility for high-density deployments.
Achieves a 500-meter transmission distance over single-mode fiber, covering campus and metropolitan area network interconnection scenarios.
Built-in 8-channel PAM4 modulation and DSP chip ensure signal integrity and low bit error rate.
Compliant with IEEE 802.3dj and OSFP MSA standards, compatible with mainstream switch and server platforms.
