Supports 800Gbps total bandwidth, with single-channel rates up to 106.25Gbps, meeting ultra-high-speed data center interconnect requirements.
Utilizes PAM4 modulation and VCSEL array technology to achieve stable transmission up to 100 meters on OM4 multimode fiber.
Built-in Digital Diagnostic Monitoring (DDM) for real-time monitoring of key operational parameters such as temperature, voltage, and optical power.
Compliant with CMIS management interface standard, supports hot-pluggable design for easy deployment and maintenance.
Operating temperature range from 0°C to +70°C, power consumption less than 13.5W, suitable for high-density equipment room environments.

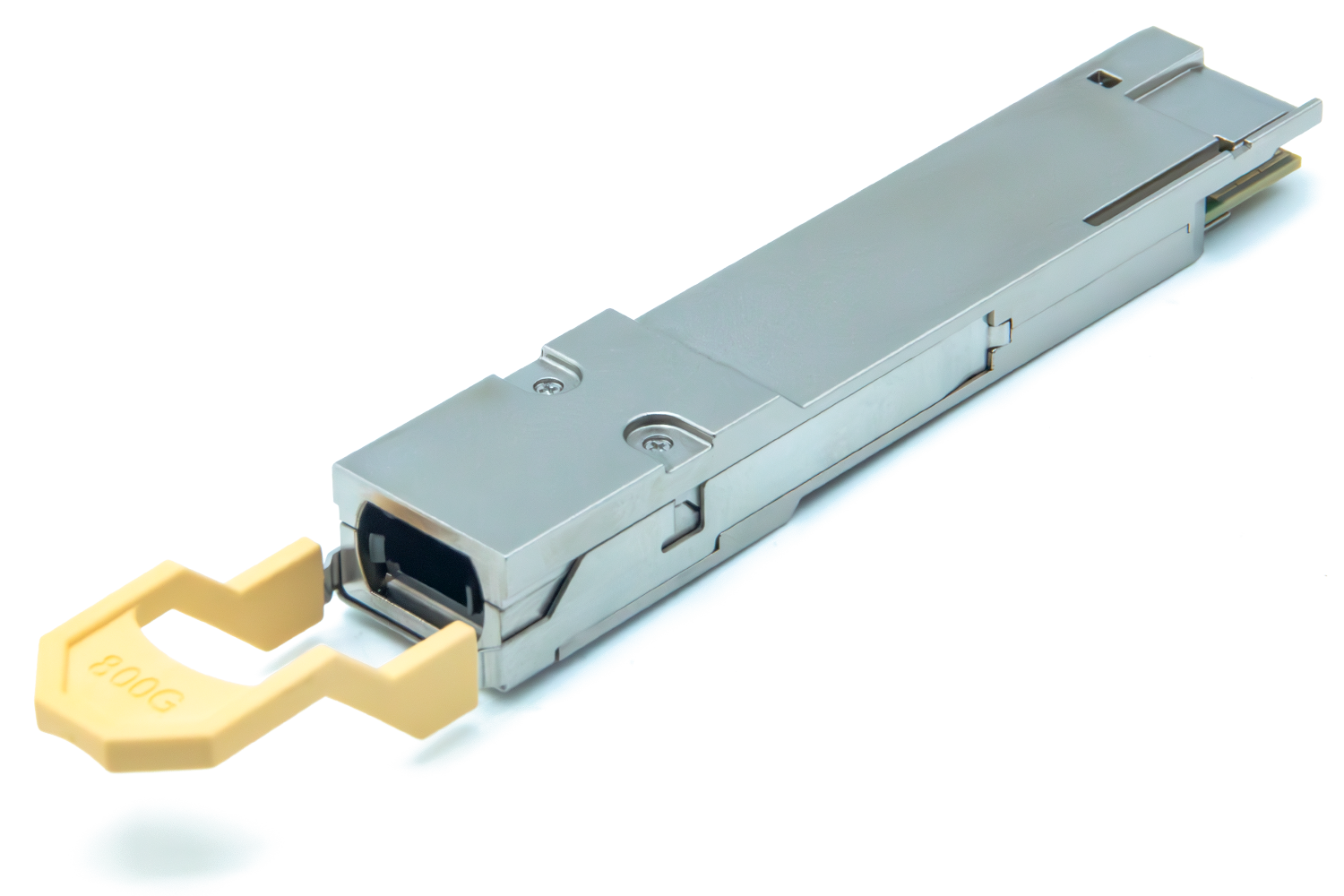

For NVIDIA 800GBASE-SR8 QSFP-DD Multimode Optical Module 8x100G PAM4 Multimode Fiber 850nm 100m DOM MTP/MPO-16 APC

This is a QSFP-DD form factor 800G short-reach optical module, specifically designed for data centers and telecommunications networks. It transmits data in parallel through 8 independent channels, with each channel supporting a rate of up to 106.25 Gbps, achieving a total bandwidth of 800 Gbps, effectively addressing bandwidth bottlenecks in high-traffic scenarios. The module utilizes 850nm wavelength lasers and an MPO-16 interface, enabling transmission distances of 60 meters or 100 meters over OM3/OM4 multimode fiber, respectively. It is suitable for server clusters, core switch interconnections, and high-performance computing environments. Its low power consumption, wide operating temperature range, and intelligent monitoring features make it an ideal choice for modern green data centers.
800G QSFP-DD:
QSFP-DD-800G-SR8
QSFP-DD-800G-DR8
QSFP-DD-800G-2*FR4
Compatible:
For NVIDIA
For Cisco
For Arista
1269.00$
GST Incl.
Buy Now
Add to Cart
-
+
For NVIDIA 800GBASE-SR8 QSFP-DD Multimode Optical Module 8x100G PAM4 Multimode Fiber 850nm 100m DOM MTP/MPO-16 APC
This is a QSFP-DD form factor 800G short-reach optical module, specifically designed for data centers and telecommunications networks. It transmits data in parallel through 8 independent channels, with each channel supporting a rate of up to 106.25 Gbps, achieving a total bandwidth of 800 Gbps, effectively addressing bandwidth bottlenecks in high-traffic scenarios. The module utilizes 850nm wavelength lasers and an MPO-16 interface, enabling transmission distances of 60 meters or 100 meters over OM3/OM4 multimode fiber, respectively. It is suitable for server clusters, core switch interconnections, and high-performance computing environments. Its low power consumption, wide operating temperature range, and intelligent monitoring features make it an ideal choice for modern green data centers.
800G QSFP-DD:
QSFP-DD-800G-SR8
QSFP-DD-800G-DR8
QSFP-DD-800G-2*FR4
Compatible:
For NVIDIA
For Cisco
For Arista
1269.00$
GST Incl.
Supports 800Gbps total bandwidth, with single-channel rates up to 106.25Gbps, meeting ultra-high-speed data center interconnect requirements.
Utilizes PAM4 modulation and VCSEL array technology to achieve stable transmission up to 100 meters on OM4 multimode fiber.
Built-in Digital Diagnostic Monitoring (DDM) for real-time monitoring of key operational parameters such as temperature, voltage, and optical power.
Compliant with CMIS management interface standard, supports hot-pluggable design for easy deployment and maintenance.
Operating temperature range from 0°C to +70°C, power consumption less than 13.5W, suitable for high-density equipment room environments.
